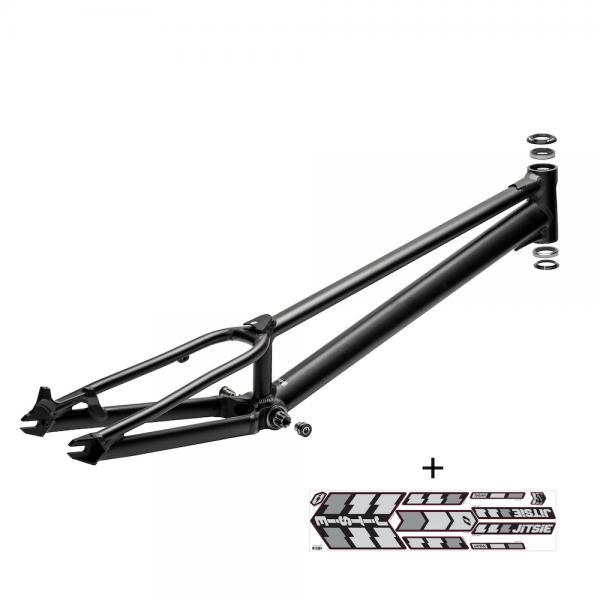

Jitsie Varial 1045 frame kit

Features:

* manufactured from aerospace 6061-T6 aluminium * minimalist design with a focus on performance and durability

* 120mm high CNC machined head tube designed for semi-integrated headset * 68mm wide bottom bracket shell for ISIS bottom bracket

* CNC machined post mount rear disc brake support suitable for 160/162mm rotor includes integrated rear dropout for increased strength and +20mm adaptor for 180mm brake disc

* CNC machined horizontal dropouts distanced 116mm apart come supplied with steel snail cam bolts

* sandblasted and black anodized finish with Jitsie graphics

* frame comes supplied with a Jitsie seat

Geometry:

* wheelbase: 1045mm

* chainstay length: 370mm

* bottom bracket height: 50mm

* head tube: 120mm

* head tube angle: 71.5° (geometry based on Jitsie Varial fork 400mm and +35mm offset)

Frame kit includes:

* semi-integrated headset installed

* ISIS bottom bracket installed

* Jitsie frame sticker kit

* silicon seat plug installed
