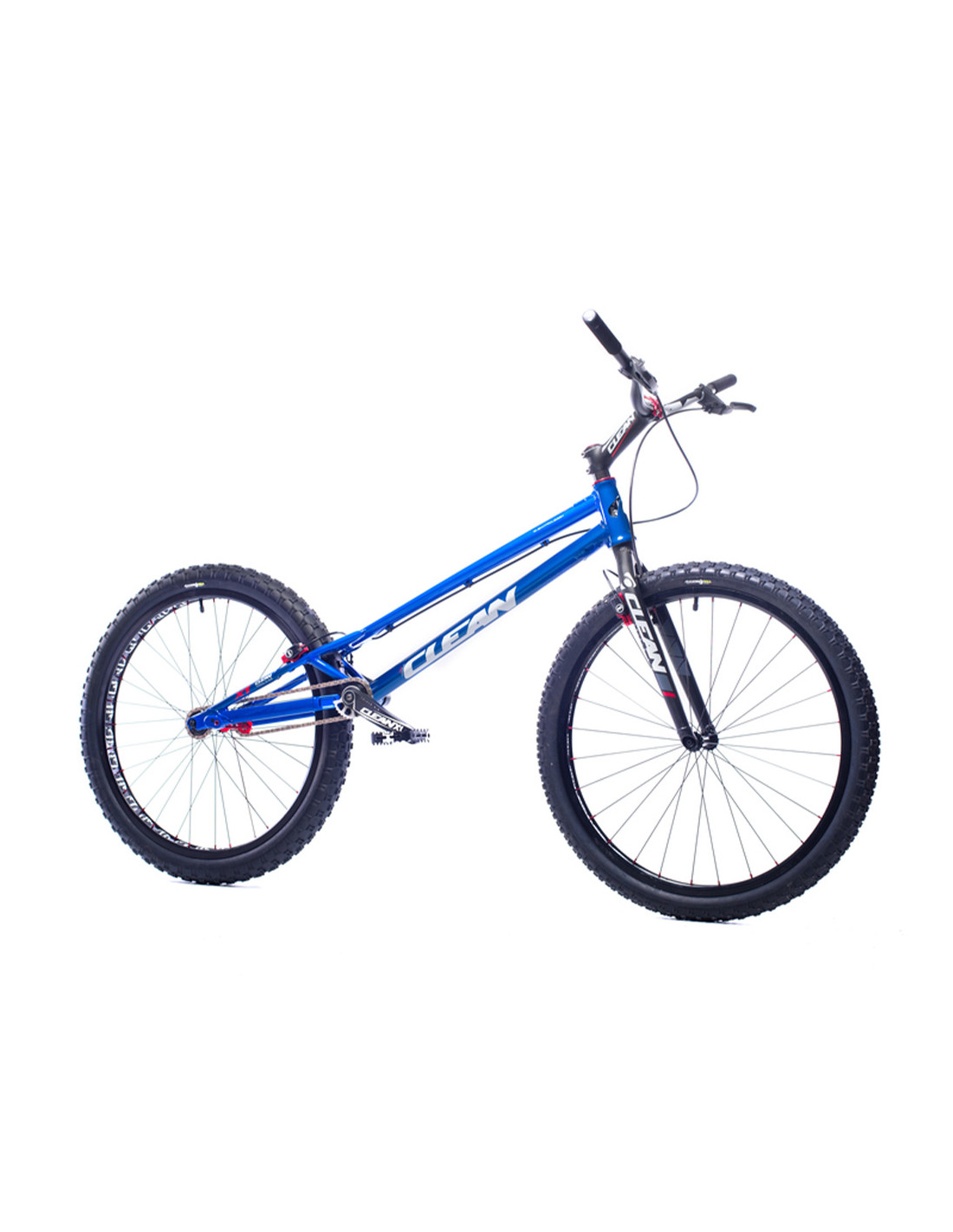

Clean X1 26" ECO
New high quality 6061 T6 + 7075 T6 aluminum frame.
Tapered headset, being 1 1/8” at the top and 1/5” at the bottom, improving stiffness and weight considerably.
Completely redesigned frame, with also renewed graphics.

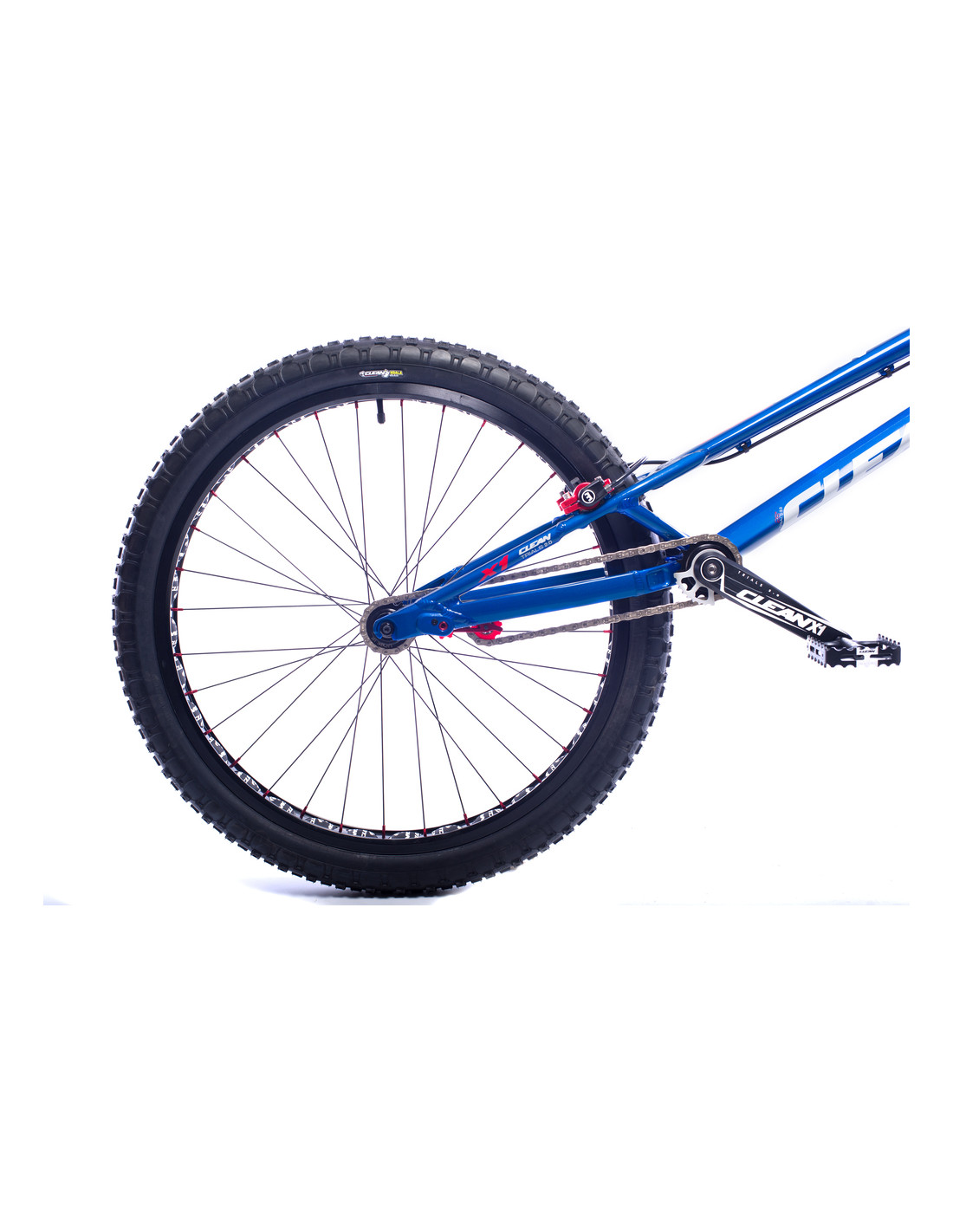

CNC machined vertical dropouts. Integrated chain tensioner. CNC machined HS brackets, fully integrated into the "seatstays".
Frame: Clean X1. Aluminum 6061 T6 + 7075 T6

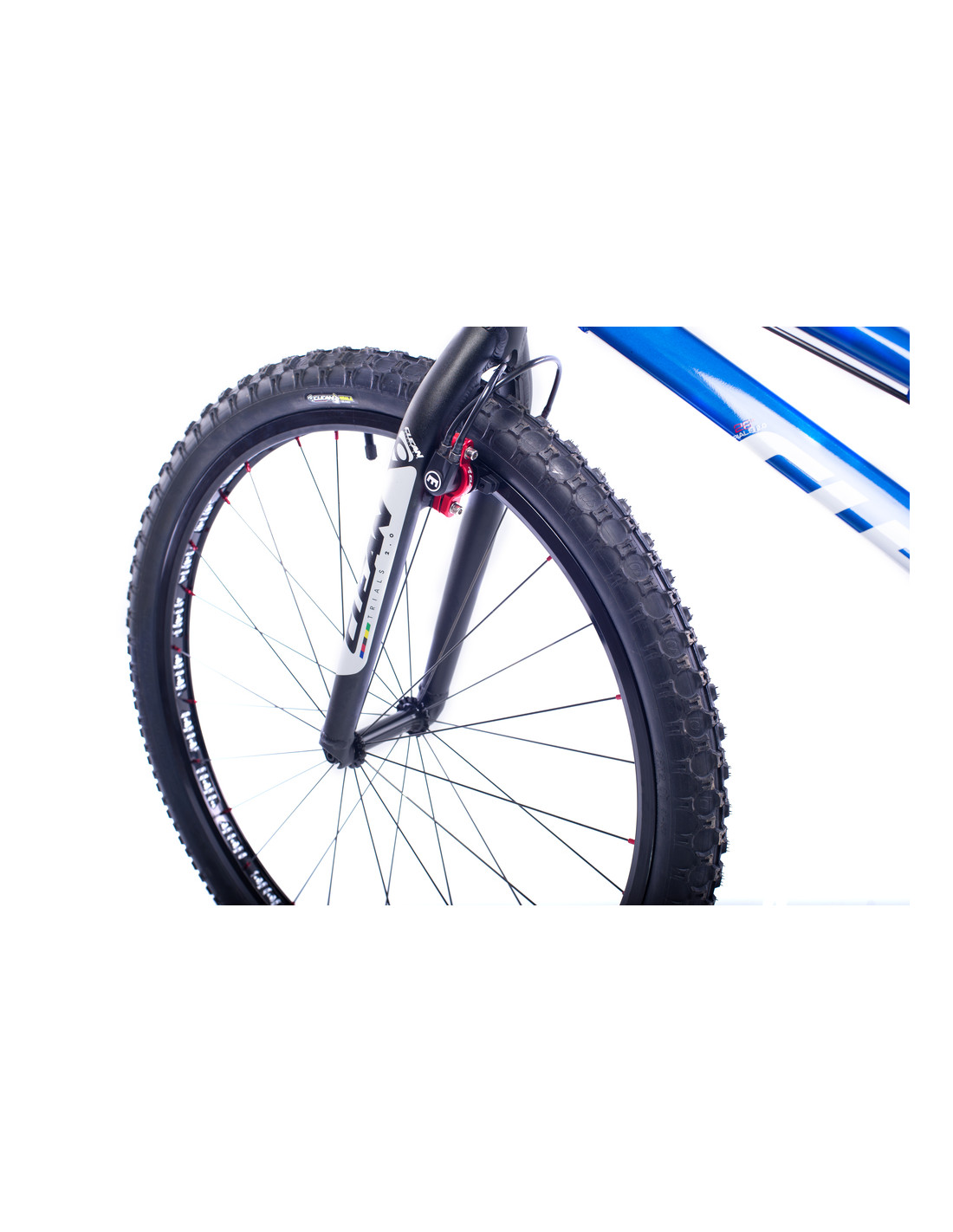

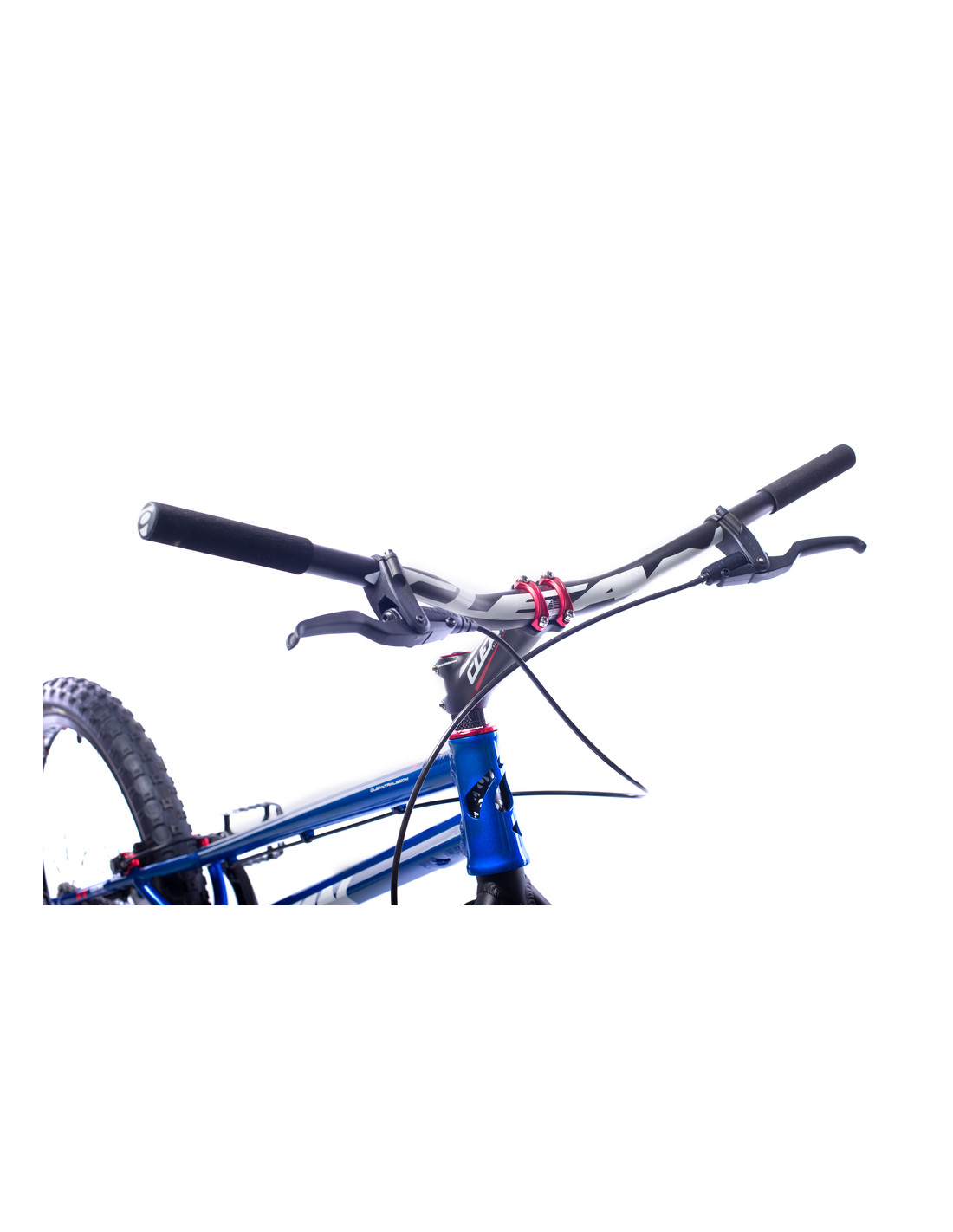

Fork: Clean X2. Aluminum 7005 T6. HS or PM Handlebar: Clean ALU. 103mm height Grips: Clean extra-fine foam Stem: Clean 155 x 25º
Headset: Clean Tapered. Super light. semi integrated
Hubs: Clean X2. 100mm front, 116mm rear
Brakes: Magura HS11
Supports: Magura Bottom Bracket: Clean ISIS 128mm
Pedals: Clean Single Cage.
Chain: KMC Z1eHX Tensioner: Clean Integrated. 7075 CNC. 10T plastic wheels
Rims: Clean Spokes: 1.8 Black
Nipples: 16g Aluminum Red Freewheel: 108.9. 18T Fixed
Gear: Clean 15t
Front tire: Koala 26”
Rear tire: Koala 26”
Front tube: Clean 26"
Rear camera: Clean 26" Changes in
PRO model: Complete Clean HS Brakes
WC Edition model: Complete Clean HS Brakes PRO rims 107 carbon handlebar carbon fork
Overall length: 1083mm
Bottom bracket height: +68mm
Back base: 380mm
Steering angle: 72º Steerer Tube: 125mm
Fork offset: +40mm
